Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine

Qingdao Knnjoo Machine Inc
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

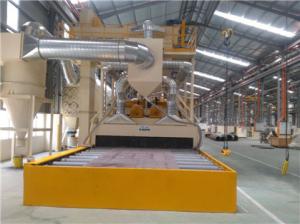

Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine

  • 1
  • 2

Brand Name : KNNJOO

Model Number : KJ6935

Certification : CE / ISO9001

Place of Origin : QINGDAO,CHIINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 Sets Per Month

Delivery Time : 30~50 Working Days

Packaging Details : Stretch Film Winding

Application : Q69 Series Continuous Steel Plate Roller Conveyor Shot Blasting Machine

Cleanliness : Sa2.5~3.0

Blast wheel : Direct Coupled H400/180ZL

Color : Customized

Motor : Siemens or Domestic brand

Motor Power : 8*15kw

PLC : Siemens

Touch Screen : Siemens

Power : 380/400/440V

Warranty : 1 Year

Contact Now

Q69 Series Continuous Steel Plate Roller Conveyor Shot Blasting Machine

Roller Conveyor Shot Blasting Machine Application


Customized Roller Conveyor Shot Blasting Machine for Metal Sheet/Steel Plate Cleaning. This equipment is specially designed for or cleaning and strengthening Metal Sheet/Steel Plate Cleaning etc. It is a kind of roller conveyor passing type automatic shot blasting cleaning equipment, which makes the cleaned workpiece get a certain roughness of the clean surface, increase the adhesion of the paint film, improve the surface quality and anticorrosion effect. Using part of German technology and independent research and development technology, the technical performance of the equipment has reached the leading level in Asia.

Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine
Before Shot Blasting! After Shot Blasting! Clean up effect is good!

Technical Parameter

Item Unit Parameter Remark

Workpiece
specifications

Width mm 3500
Thickness mm 6-60
Length mm 3580

A. Plate material – 3500 mm (W) x 3580 mm(L) x 10mm (t)
B. Tube Sheet – 1324mm(W) x 1384(L) mm x 60mm (t)

Blast wheel kw 15kw*8
Roller conveyor speed m/min 0~5 Continuously Variable Transmission
Processing speed m/min 2
Surface roughness μm Adjusted by abrasive size 30~75
Abrasive circulation amount T Bucket elevator,separator, conveyor ≥120t/h
Total energy consumption Total power kw ~249
Compressed air consumption m3/min 0.8-1.0
Compressed air pressure range MPa 0.5~0.7
Whole line See drawing


Note: The equipment can be customized according to the your workpiece size.

Details Images

Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine
High power direct-coupled Automatic abrasive control valve manufacturing workshop
Blast wheel Motor: SIEMENS

Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine
Touch Screen & PLC: SIEMENS Welding seams and related surfaces are smooth and regular!
Automated by PLC controlled.


Our Advantage
Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine

Customer Cases

Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine

Loading Site

Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine

Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine Q69 Series Continuous 3500mm Steel Plate Shot Blasting Machine


FAQ

Q1: Are you a trading company or a factory?
A: We are a manufacturer of shot blasting machines integrating industry and trade.
Q2: Does your product have CE certification?

A: Yes. We have CE certification.
Q3:Can I have your quotation?
A: Please provide us with your workpiece size information and production capacity requirements as much as possible, and then we will recommend a suitable machine for you.
Q4:How to operate and maintain the machine?

A: We will provide you with professional and detailed USERGUIDE of the machine and we also provide foreign technical training services.
Q5:Where is your factory located? How can I visit it?

A: Our factory is located in Qingdao city, Shandong province, China.
You can fly to Qingdao liuting Airport, we will pick you up.
